Area Dimension

This PMI object represents a dimension of an area of a polygonal region described by an arbitrary number of points. Below we will consider this object in detail.

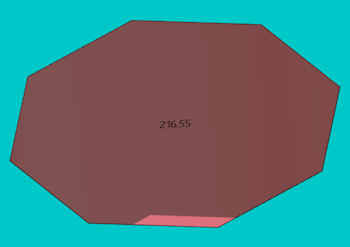

Area dimension

Object

Common type of the area dimension object (TypeScript):

export type C3DViewAreaDimension = {
    type: C3DViewObjectTypes.AreaDimension
    uuid?: string
    points: C3DViewPoint[]
    placement?: C3DViewPlacement
    options: C3DViewDimensionOptions
    userData: C3DUserData
}

The properties type, uuid, and userData are described here. The property options is described here. Additionally for this PMI object:

  • type can be C3DViewObjectTypes.AreaDimension or a string "AreaDimension";

  • userData object is created in the process when returned in the onCreate event callback.

  1. points is an array of points to build an object.

  2. placement is a plane into which all of the object points are projected.
